PVC Wall Panel Factory and Manufacturing Process Overview

This PVC wall panel factory and manufacturing process overview takes you behind the curtain. PVC panels are one of the most versatile materials in the global wall panel market. They are lightweight, 100% waterproof, and can be designed to look like anything from Italian marble to rustic wood. But how are they made?

It is not a simple process. It is a precise blend of chemistry, high-temperature mechanics, and artistry. I have walked through many production facilities. The first thing you notice is the sound: the constant, low hum of the extruders. The second is the speed. A continuous, decorated panel emerges from a complex line of machinery 24 hours a day.

This guide will break down that entire journey. We will go step-by-step from raw plastic resin to the finished, packaged panel. You will learn what separates a high-quality panel from a cheap, brittle one.

What Exactly is a PVC Wall Panel?

A PVC wall panel is a lightweight, waterproof, and durable interior wall covering.¹ It's made primarily from Polyvinyl Chloride resin.² It often features a hollow-core or rigid-core structure. This design makes it an easy-to-install, low-maintenance alternative to materials like tile or drywall.

These panels are defined by their core structure. The "hollow-core" design is a marvel of engineering. It uses an internal truss-like structure. This makes the panel strong and rigid while keeping it incredibly light. This is why a single person can easily install a large panel.

Because they are 100% plastic, they are a perfect solution for wet areas.³ Think bathrooms, showers, kitchens, and commercial washrooms. Unlike drywall or MDF, a PVC panel will never swell, rot, or grow mold when exposed to moisture.

What Happens Inside a PVC Wall Panel Factory?

A PVC wall panel factory is a high-volume production facility. It transforms raw plastic resins and additives into finished, decorated panels. The core process involves raw material mixing, high-heat extrusion, rapid cooling and calibration, surface decoration (printing or lamination), and precision cutting and packing.

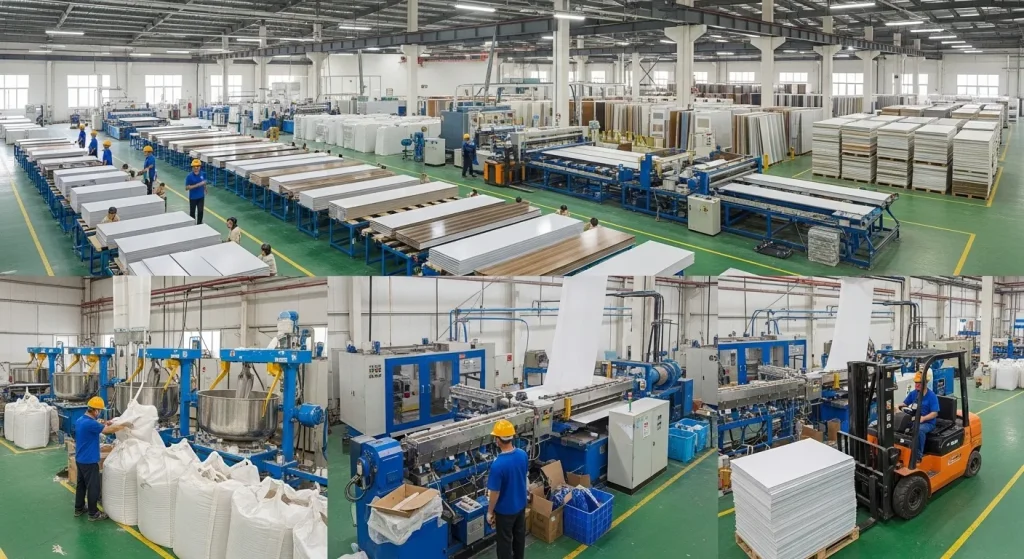

When you enter a modern factory, you see 200-foot-long production lines. Each line is a single, integrated system. At one end, bags of white powder are fed into a hopper. At the other end, a finished, marble-effect panel is being automatically cut and stacked. The factory is a testament to automation, with operators monitoring temperatures, speeds, and colors on digital consoles.

Step 1: What Raw Materials Are Used to Make PVC Panels?

The primary raw material is PVC resin, a fine white powder.⁵ This is mixed with calcium carbonate (for rigidity and cost reduction). Stabilizers (to prevent heat degradation) and plasticizers (for flexibility) are also added. Pigments provide the base color, and processing aids help the mix flow smoothly.

This "recipe" is the factory's most valuable secret. It is not just a simple mix. It is a precise formula that determines the panel's final properties.

Here are the key ingredients and their jobs:

Why is Calcium Carbonate So Important?

Calcium carbonate is a critical filler.⁶ It dramatically reduces the cost of the final panel by replacing more expensive PVC resin. It also adds rigidity, impact strength, and a whiter, more opaque base. The "recipe" of resin-to-calcium is a factory's core secret.

This ratio is the best indicator of panel quality.

• High-Quality Panel: Has a lower ratio of calcium carbonate. This means more PVC resin. The panel is more flexible, stronger, and has better impact resistance. When you try to bend a corner, it will flex.
• Low-Quality Panel: Has a high ratio of calcium carbonate. This makes the panel very cheap. It also makes it heavy, "chalky," and extremely brittle. When you try to bend a corner, it will snap.

What is the Difference Between Hollow-Core and Solid-Core Recipes?

A hollow-core panel's recipe is designed for lightness.⁷ It uses foaming agents to create small air pockets. A solid-core (or "rigid-core") panel recipe uses more PVC resin and stabilizers. This creates a denser, heavier, and far more impact-resistant final product.

Solid-core PVC panels are often seen in commercial settings. They are much more durable against impacts from carts, luggage, or chairs. The recipe has a higher percentage of PVC resin and impact modifiers. Hollow-core is the standard for residential use, where it is cost-effective and perfectly durable for a home.

Step 2: How Are the Raw Materials Mixed?

The raw materials are precision-weighed and dumped into a large, high-speed industrial mixer.⁸ The mixer heats the ingredients through friction. This "hot mix" process opens the PVC's molecular structure to absorb the plasticizers and stabilizers. The batch is then cooled in a "cool mixer" to stabilize it.⁹

This is a critical chemical stage, not just simple stirring.

1. Hot Mixing: The stainless-steel mixing tank has blades that spin at very high RPM. This friction heats the "dry-blend" up to around 120°C (248°F). This heat causes the porous PVC resin granules to swell and open. The stabilizers and plasticizers melt and are absorbed directly into the resin. This creates a perfectly homogenous, plasticized compound.
2. Cool Mixing: The hot, fluffy compound is then dropped into a separate, larger "cool mixer." This tank has water-cooled walls and slower blades. It tumbles the material until it's back to room temperature (around 40°C or 104°F). This "freezes" the additives in place and creates a stable, consistent powder compound that is ready for the extruder.

This two-step process is essential. If you tried to feed cold, unmixed materials into the extruder, it would fail. The ingredients would not be properly combined, and the panel would be a weak, inconsistent mess.

Step 3: What is the PVC Panel Extrusion Process?

Extrusion is the heart of the manufacturing process. The cooled PVC compound is fed into a twin-screw extruder.¹⁰ Inside, rotating screws melt, compress, and plasticize the material. This molten plastic is then forced at high pressure through a steel die that is shaped like the panel's profile.¹¹

Imagine a giant, industrial-grade meat grinder, but for plastic. The compound is fed from a hopper at one end. The material travels down a long, heated "barrel." Inside this barrel are two massive, interlocking screws.

Why is a "Twin-Screw" Extruder Used?

A twin-screw extruder is essential for PVC.¹² Its interlocking screws provide a much better mixing and shearing action than a single screw. This ensures all the additives, especially the calcium carbonate, are evenly dispersed. It results in a stronger, more consistent panel without "hot spots."

The screws aggressively "knead" the material. This action generates intense friction and heat, which melts the compound into a molten, dough-like substance. This ensures the calcium carbonate is fully integrated, not just floating around. A single-screw extruder would let clumps pass through, leading to brittle spots in the final panel.

How Does the Extrusion Die Create the Hollow-Core Structure?

The die is a complex piece of steel. It has intricate internal channels. As the molten PVC is forced through, the die separates the flow.¹³ A series of "pins" and "mandrels" inside the die creates the hollow "flutes" or "trusses" that define the panel's internal structure.

This is the "magic" of the process. The die is a highly polished, expensive, and precisely engineered tool.¹⁴ It is what forms the panel's profile, including the tongue-and-groove edges. The molten plastic flows around these internal mandrels, and the streams re-join on the other side. This creates the hollow channels that give the panel its strength-to-weight ratio.

A tiny scratch or piece of burnt plastic on the die's surface will create a visible line on every single panel that comes out. Factories have dedicated "die maintenance" teams that do nothing but clean and re-polish these tools.

Step 4: What is the Calibration and Cooling Table?

The panel exits the die hot, soft, and oversized. It immediately enters a calibration table. Here, it is pulled through a series of vacuum-sealed sizing molds that match the die's shape. Cold water floods the system, rapidly "freezing" the panel into its final, precise dimensions.

This stage is just as important as the extrusion. The hot plastic (around 190°C or 374°F) is like wet spaghetti. It has no structural integrity.

1. Calibration: The calibration table is a long, stainless-steel trough. It holds a "calibrator," which is a metal mold that looks just like the die. A powerful vacuum is applied to the calibrator. This vacuum sucks the soft, hot panel against the cold metal walls of the mold. This is what forms the sharp, perfect edges of the tongue and groove.
2. Cooling: While this is happening, the entire table is flooded with cold water. The water rapidly chills the panel, "freezing" it in this exact shape and size. The panel is pulled through this water bath for several meters to ensure the core is completely cool and rigid.

Without this step, the panel would warp, sag, and shrink unevenly. The calibration and cooling table is what guarantees that Panel 1 and Panel 5,000 will have the exact same dimensions and will click together perfectly.

Step 5: How is the Panel Decorated (Surface Treatment)?

A raw PVC panel is plain white or beige. The decoration is applied in a separate, in-line process. The two most common methods are hot stamping and lamination. Lamination (gluing a printed PVC film) is generally more durable and realistic than hot stamping (transferring a design via heat).

The raw, extruded panel is called the "substrate." This substrate is now hard, cool, and dry. It moves down the line to the decoration station.

What is Hot Stamping?

Hot stamping (or "heat transfer printing") uses a "foil" that has the design printed on it.¹⁵ This foil is pressed against the panel with a hot silicone roller. The heat and pressure transfer the ink layer from the foil directly onto the panel's surface.

• Process: A large roll of "heat transfer film" (which looks like a roll of wrapping paper) is positioned above the panel. A hot (around 200°C / 392°F) silicone roller presses this film against the PVC panel. The heat instantly transfers the inks and a thin protective lacquer from the film to the panel.
• Pros: It is very fast and very cheap. It is a one-step process.
• Cons: The design is only "skin deep." It is a thin layer of ink that can be scratched off. It often has a very high-gloss, less-realistic look.

What is Lamination (PUR Glue)?

Lamination is a more premium process. A pre-printed, textured PVC film is applied to the panel. It is bonded using a powerful PUR (Polyurethane Reactive) hot-melt glue. This creates a permanent, durable bond. The printed film itself is a separate, high-quality product.

• Process: This is a multi-step process.
  1. The panel substrate is cleaned and a "primer" is applied.
  2. Hot PUR glue is applied to the panel with a special roller.
  3. A separate, printed PVC decorative film is immediately pressed onto the glued panel.
  4. Pressure rollers ensure a perfect, bubble-free bond.¹⁶
• PUR Glue: This is the key. PUR is a "reactive" glue.¹⁷ It cures using moisture from the air to form a cross-linked bond that is incredibly strong and waterproof. It will never peel.
• Pros: Extremely durable.¹⁸ The design is on a thick, separate film, so it is highly scratch-resistant. The film can also be "embossed" with a texture that matches the print (e.g., you can feel the wood grain).
• Cons: It is a slower, more expensive process.

Here is a simple comparison:

Step 6: What Happens at the Haul-Off and Cutter?

After decoration, the continuous panel runs through a haul-off machine.¹⁹ This machine has rubber-cleated "caterpillar tracks" that pull the entire line from the extruder at a constant, precise speed.²⁰ This speed is critical. A laser-guided cutter then automatically saws the panel to its pre-set length (e.g., 8 feet).

The haul-off is the "engine" of the whole line. It pulls the panel through the calibrator, the cooling tank, and the decoration station. The speed of the haul-off must be perfectly synchronized with the output speed of the extruder.²¹

• Speed Mismatch (Too Fast): If the haul-off pulls too fast, it will stretch the soft panel. The walls will become paper-thin, and the panel will be weak.
• Speed Mismatch (Too Slow): If it pulls too slow, molten plastic will "back up" at the die. This will cause the panel to be too thick and can damage the extruder.

After the haul-off, a sensor detects the end of the panel and triggers a high-speed saw. This saw is synchronized to travel with the panel as it cuts, ensuring a perfectly straight, 90-degree edge.

Step 7: How Are PVC Panels Inspected for Quality (QC)?

Quality Control is a continuous, multi-stage process.²² Inspectors check the raw material "recipe." They check the panel's dimensions, weight, and color against a master sample every hour. They also perform impact tests (dropping a steel ball) and colorfastness tests (in a UV light box).

A good factory has QC checkpoints at every single stage.

1. Raw Materials: The "recipe" is weighed on a digital scale. A batch that is 1% off is rejected.
2. On-Line Inspection: An inspector is permanently stationed at the end of the line. Every 30-60 minutes, they pull one panel. They check:
   • Weight: Is the panel too light? (Means too much filler or the walls are too thin).
   • Dimensions: They use digital calipers to measure the thickness, width, and tongue-and-groove profile.
   • Color: They compare the panel to the "master sample."
3. Lab Testing: A few panels from each run are taken to a small, on-site lab for destructive testing.

What is a "Master Sample" in a Factory?

A "master sample" is the one perfect panel that the client (the importer) has signed and approved. This sample is kept at the factory. The QC team's job is to ensure that the 5,000th panel coming off the line is a perfect visual match to that master sample.

This is the legal and visual contract. When a color dispute happens, the factory and the client will both refer to their copy of the master sample.

What Are Common Quality Control Tests?

Common tests include a weight test (panels that are too light are brittle). An impact test (dropping a weighted ball to check for cracks). A color-matching test (using a light box). And a lamination peel test (trying to peel the film off with a knife).

• Impact Test: A heavy steel ball is dropped from a set height onto the panel. A good panel will dent. A brittle, low-quality panel will shatter.
• Color Light Box: The inspector puts the new panel and the master sample side-by-side in a special light box. This box simulates different lighting (daylight, store light, etc.) to ensure the colors match in all conditions.
• Peel Test: For laminated panels, the inspector will score the film with a knife and try to pull it off. On a good PUR lamination, the film will tear before the glue bond breaks.

How Does a PVC Factory Handle Packaging and Shipping?

Once cut, panels are inspected and stacked. They are often protected with a peel-off plastic film. A set number of panels (e.g., 10) are packed into a cardboard carton or shrink-wrapped. These cartons are stacked onto wooden pallets, wrapped, and loaded into a shipping container.

This final step is crucial for protecting the product. The tongue-and-groove edges are the most sensitive part. A damaged edge makes the panel useless.

• Good Packaging: The panels are packed in a strong, 5-ply cardboard carton. Cardboard or foam protectors are placed on the ends to protect the edges.
• Bad Packaging: The panels are simply shrink-wrapped together. This offers zero protection. The panels on the outside of the stack will almost certainly be damaged during shipping.

What's the Difference: PVC vs. WPC Manufacturing?

While both are extruded, the processes are different. PVC panels are almost 100% plastic-based. WPC (Wood-Plastic Composite) panels contain real wood fibers. This requires special handling. The wood fiber must be completely dried, and the extrusion temperature is different.²³

The core difference is the raw material. WPC manufacturing is more complex.

• Drying: Wood fiber holds moisture. Any moisture in the extruder will turn to steam and ruin the panel. So, WPC factories must have large, industrial "dryers" to prepare the wood fiber.
• Temperature: Wood fiber will burn at the high temperatures used for PVC. WPC extrusion runs at a lower temperature.
• Die Design: WPC is a thicker, heavier, and less-fluid material. The extrusion dies and screws are designed differently to handle this dense, abrasive composite.

Final Thoughts: A Process of Precision

The PVC wall panel is a product of pure precision. The journey from a bag of white powder to a beautiful, marble-effect wall panel is a high-speed, high-tech process.

Every single step—from the chemical recipe to the cooling speed—is critical.²⁴ The quality of the final product is not just a matter of "looks." It is a direct result of the factory's commitment to using the right raw materials, the best decoration method, and a strict quality control process. The next time you see one of these panels, you will know the complex industrial story behind it.
